Drawings + Specs → Estimate
Arzana is trained on your past quotes and job costing data to read custom drawings and spec sheets and assemble estimates with guaranteed margin floors in under a minute.
How It Works

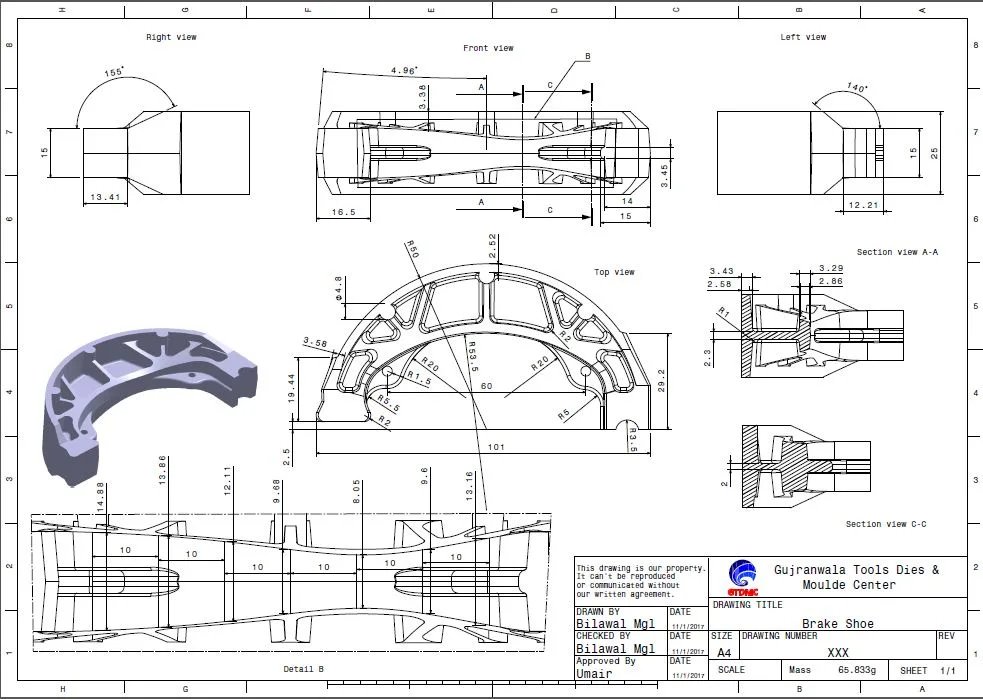

drawing.tif - Part Drawing

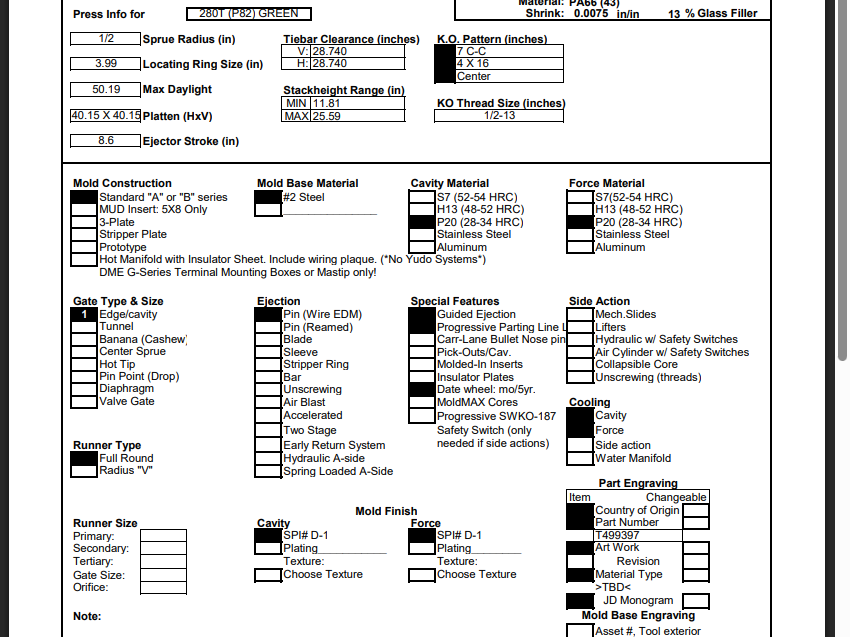

specs.xlsx - Tool Build Spec
Analyzing Against Historical Job Costs...
PMC25-009
CalculatedRe-calculate
Precision Plastics - Brake Shoe Mold
MATERIAL
$36,275
LABOR
$36,900
410 hrs @ $90/hr
GRAND TOTAL
$73,175
LEAD TIME
14 wks
PER PART
$3.58
50,000 parts/yr
Part Dimensions
WIDTH (IN)
10.15
LENGTH (IN)
5.85
HEIGHT (IN)
3.34
MOLD ADD W (IN)
3.22
MOLD ADD L (IN)
12.15
Mold Dimensions
WIDTH (IN)
13.375
LENGTH (IN)
18
HEIGHT (IN)
17
Mold Info
STEEL TYPE
H13
CAVITIES
2 x 1
SPRUE TYPE
Hot Sprue
MOLD TYPE
Open/Close
Cost Estimation
CategoryCost
Core & Cavity Blocks5,100
Insert Steel3,800
Ejector Box2,415
Slides & Lifters1,950
Lamina850
Pins & Bushings1,000
PL Locks550
Switches475
Water Fittings/Bolts380
Graphite1,910
Hot Runner8,200
Threaded Core & Gear650
Collapsible Core420
Hydraulic1,500
Heat Treat2,200
Polish and Texture3,500
Shipping950
Miscellaneous425
Material Subtotal$36,275
Labor410hrs @ $90/hr =36,900
GRAND TOTAL$73,175
Ready to automate your estimating?
See how Arzana generates accurate estimates from specs in minutes.
